Products > Knock Down 2-Gate Wire Mesh Bin (KD2GW-01)

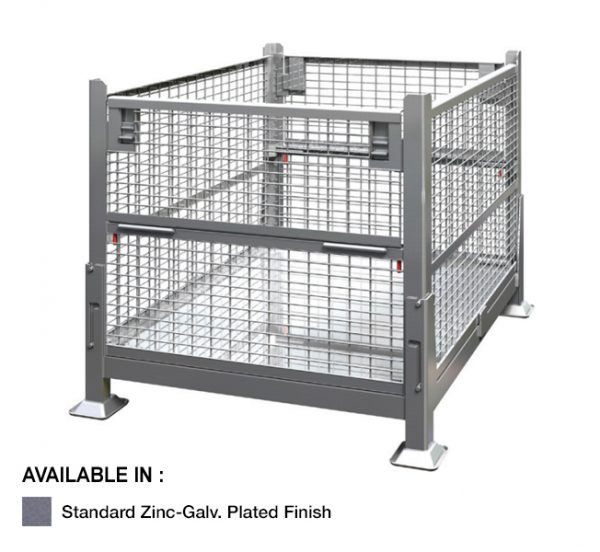

A large industrial metal crate with a mesh design and solid base. The crate has an open top and foldable side panels for easy access and storage. The design allows for visibility and ventilation of the contents while providing robust support.
A rectangular metal storage crate with grid-like mesh walls, an open top, and sturdy legs at each corner. The front panel is lowered, creating an entryway for easy access to the contents inside. The crate is primarily a grey metallic color.
A stackable metal pallet container with a grated design, four sturdy corner posts, and a flat base. The top has a partially open section showing the grid structure, designed for storing and transporting materials efficiently.
A stack of four industrial metal wire mesh storage cages is shown. They are neatly stacked on top of each other, each having a sturdy frame and a grid-like pattern on the sides for visibility and ventilation. The cages appear empty.
An image of a tall, metallic baker's rack with eight removable trays. The sturdy structure appears to be made of stainless steel, suitable for holding multiple baking sheets or trays in a kitchen or industrial setting. The rack is empty and stands alone against a plain background.
Technical drawing of a collapsible dog crate. The top view shows a square shape. The side and front views display mesh panels with collapsible legs. Dimensions are labeled: 40 1/2 inches width, 34 1/2 inches depth, 32 inches height when open, and 14 1/4 inches when collapsed.

Knock Down 2-Gate Wire Mesh Bin (KD2GW-01)

COLLAPSIBLE, 2 GATE, WIRE MESH STEEL BIN

Max. Stack Height: 5 Bins in Warehouse
Inside Usable Volume: 18 Cubic Feet
Half-Drop Gates on Both 34 1/2″ Sides
Wire Mesh 2″ x 1″ c/c x .148″Ø (9 Gauge) – 4 Sides
Sheet Metal Floor on Tubing Base Structure
108 Upright Bins Fit on 53′ Trucks
252 Collapsed Bins Fit on 53′ Trucks

Request Quote
PRODUCT SPEC SHEET
Product Attributes
Dimensions 40.5 × 34.5 × 32 in
Material

9 Gauge Steel
Colour

Standard Zinc Plated Finish
Load Capacity

3200 lbs.
  • All dimensions are approximate
  • The customer is responsible for determining whether the Davco Industries product will be suitable for their own application
  • These Davco parts are similar to the above mentioned competitive part numbers. It is the responsibility of the customer to determine all critical dimensions match their own requirement
  • Davco Industries will not be liable for any loss or damage arising from the Davco Industries product
